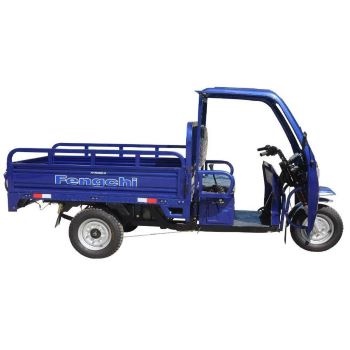

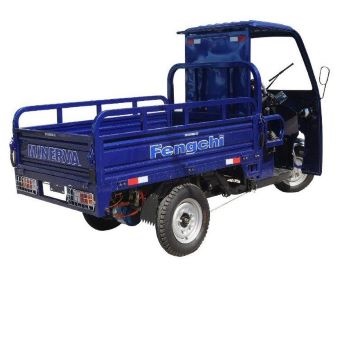

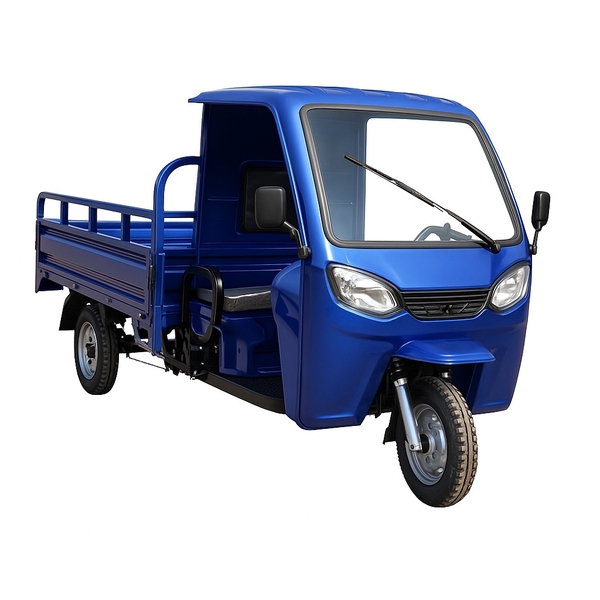

ELECTRIC TRICYCLE

Battery Specifications

• Type: Lithium-ion and Lithium Iron Phosphate (LiFePO4)
• Capacity: 60 Volt 100 Ah
• Charger: Type B connector, input 100–240 Volt

Controller

• 60 Volt, 18 tubes / sine vector
• Power supply system: 12 V

Braking System

• Front and rear drum brakes

Tires

• Front: 4.50 x 12
• Rear: 4.50 x 12

Front Fork

• Reinforced with suspension

Seat

• Upholstered with imitation leather

Additional Features

• Equipped with reverse gear with audible signal
• Manual tipping mechanism

Motor

• Brushless motor
• Power: 1500 W
• Torque: 350 Nm
• Speed: 3300 r/min

Lighting System

• LED with 2 front headlights

Performance

• Maximum speed: ≤50 km/h
• Range: ≤80 km
• Load capacity: 800–1000 kg

Controls

• Emergency brake lever and gear shift located on the right side of the driver

Dimensions

• Overall (L x W x H): 3280 x 1300 x 2050 mm
• Cargo box (L x W x H): 1800 x 1250 x 2100 mm

Cabin & Equipment

• Enclosed cabin with mirrors and electric windshield wiper

Dashboard

• LED type, displaying kilometers traveled, battery level, and speed

Additional Features

• Bluetooth audio player
• Jack, spare wheel, and wheel wrench
• Battery connectivity via two QR codes: one for the mobile app and another for battery diagnostics

Color

• Blue RAL 5010
